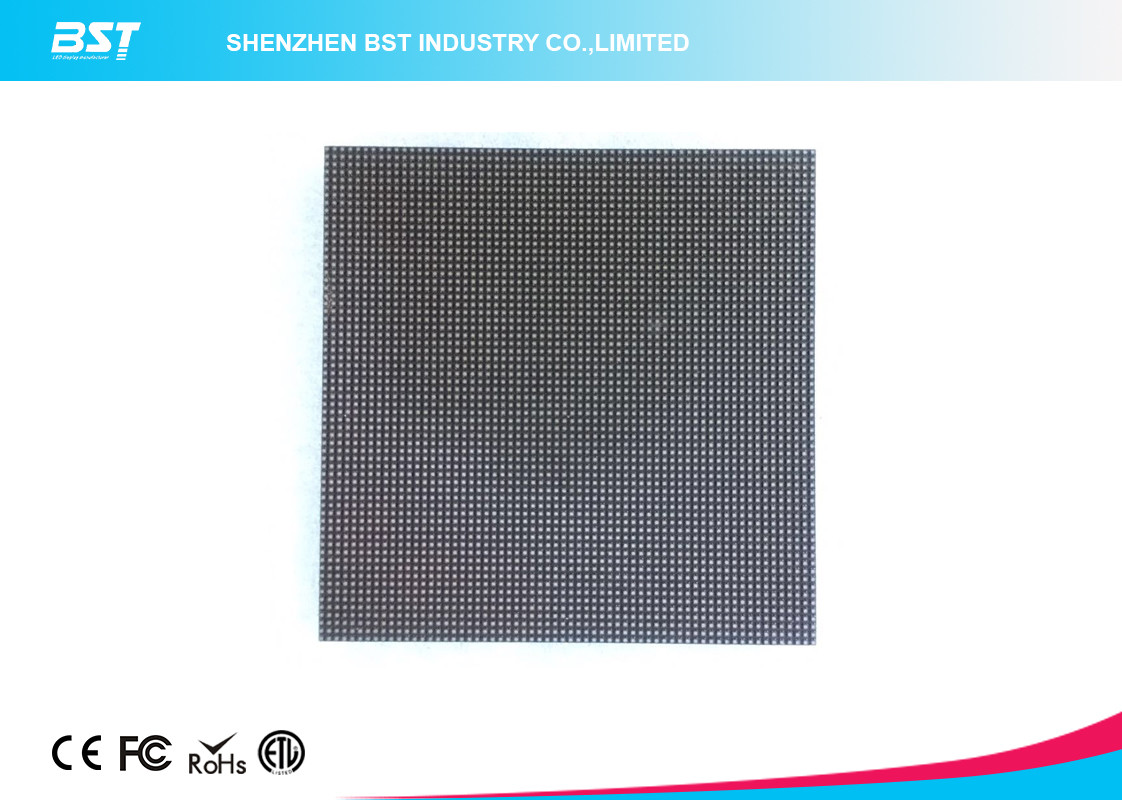

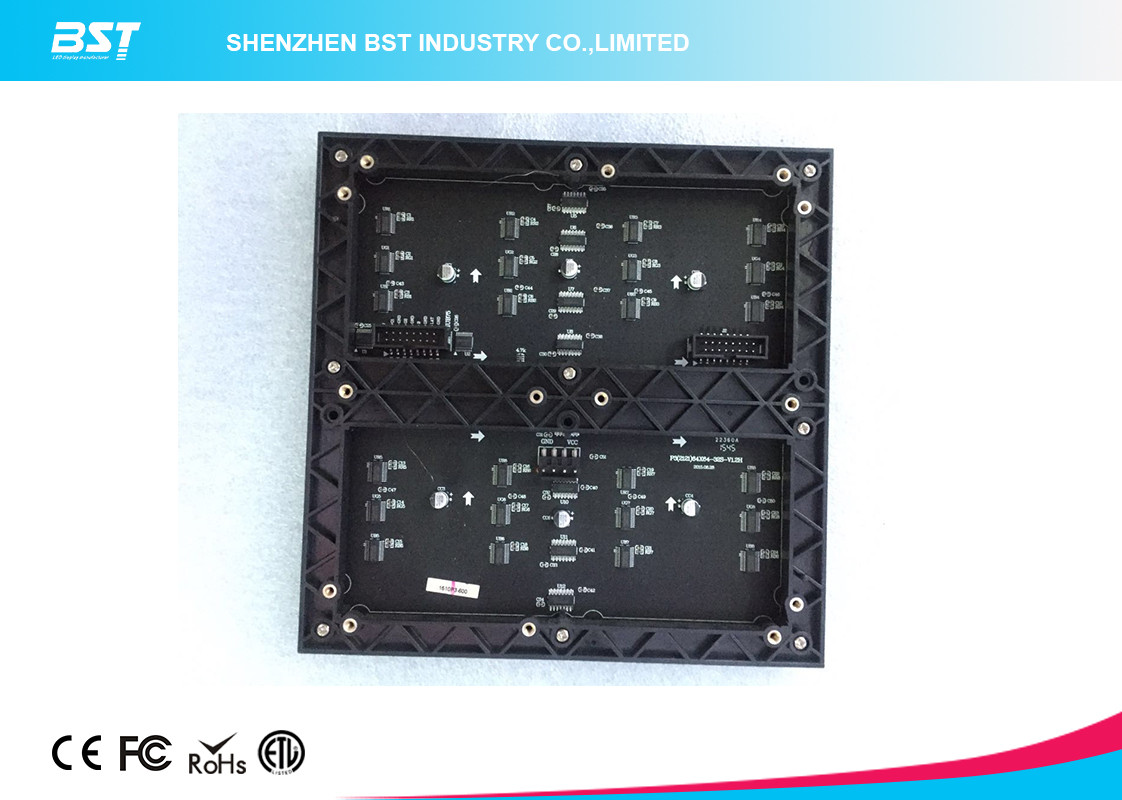

High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

  • 1
  • 2
  • 3

Brand Name : BST

Model Number : BST-IM-2.5

Certification : CE, RoHS, FCC, ISO

Place of Origin : Shenzhen, China

MOQ : negotiable

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000sqm/month

Delivery Time : 10-20 days after receive payment

Packaging Details : Carton case, Plywood case ;

Type : P2.5mm

Drive Method : 1/24 scan

View Angle : 140 degree (H/V)

Size : 240X240mm

Package : carton case

Hub Type : Hub75

Contact Now

High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising​


Quick Detail:
1, First class LED chip
2,  Good quality; Good Price
3. 240× 240 mm module size;
4. SMD2121 Black LEDs;
5. 1/24 scan constant current;
6,  Fast delivery time.

Detail Description:
This LED module is with low power consumption, about 300 W per square meter;
Each square meter brightness could reach to 1300 nits;
Synchronization control method operated to achieve higher refresh rate.

Specifications:


Product model number


BST-IM-2.5

1.Pixel


Pixel L ED

2121

Pixel Configuration


1 R,  1G ,  1B


Wave length ( nm )


R: 626-628 ,  G: 518-520 ,  B: 466-468


Pixels Pitch ( mm )


2.5


2 . Module


Module Size ( mm )


240 * 240 * 10


Module Pixels (dot)


96 * 96


3.Packaging


Packing box material


Wooden case or Carton case

4.electricity parameter


Pixel density (dots/ m 2 )


160000

White Balance Brightness ( cd/m 2 )


≥ 1300


Color temperature ( K )


5000-9500 (choice by user)


Brightness Adjusted


100 grade by software or by Auto-optic induced.


View Angel


Horizontal 140 ° ; Vertical 140 °


Best viewing distance ( m )


2.5-30


Communication distance ( m )


Internet Wire : 120 Fiber Cable : 1000


Screen work Method


1/24 scan


LED driving method


Constant driving current


Gray Grades


16384 levels for each color


Refresh Frequency ( Hz )


≥ 1500


Picture display method


Dots to dots display synchronized with CRT


Signal interface


DVI


Input signal


Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV


Display format


800 * 600 ,  1024 * 768 ,  1280 * 1024


Software


Support windows series system


Working temperature (ºC )


-30+60


Humidity ( RH )


Up to 95


Stored temperature ( ºC)


-30  +70


Screen Lifetime(hours)


≥100, 000


Out of controlled dots

≤3/10, 000 (Out of controlled dots means the pixels
of which the brightness
and the wave length are both >10%
depart to the normal one)

Switch power supply


Switch power supply
(include CE/GS or UL/CSA certificate)
110V/60HZ ,  220V/50HZ



High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial AdvertisingHigh Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

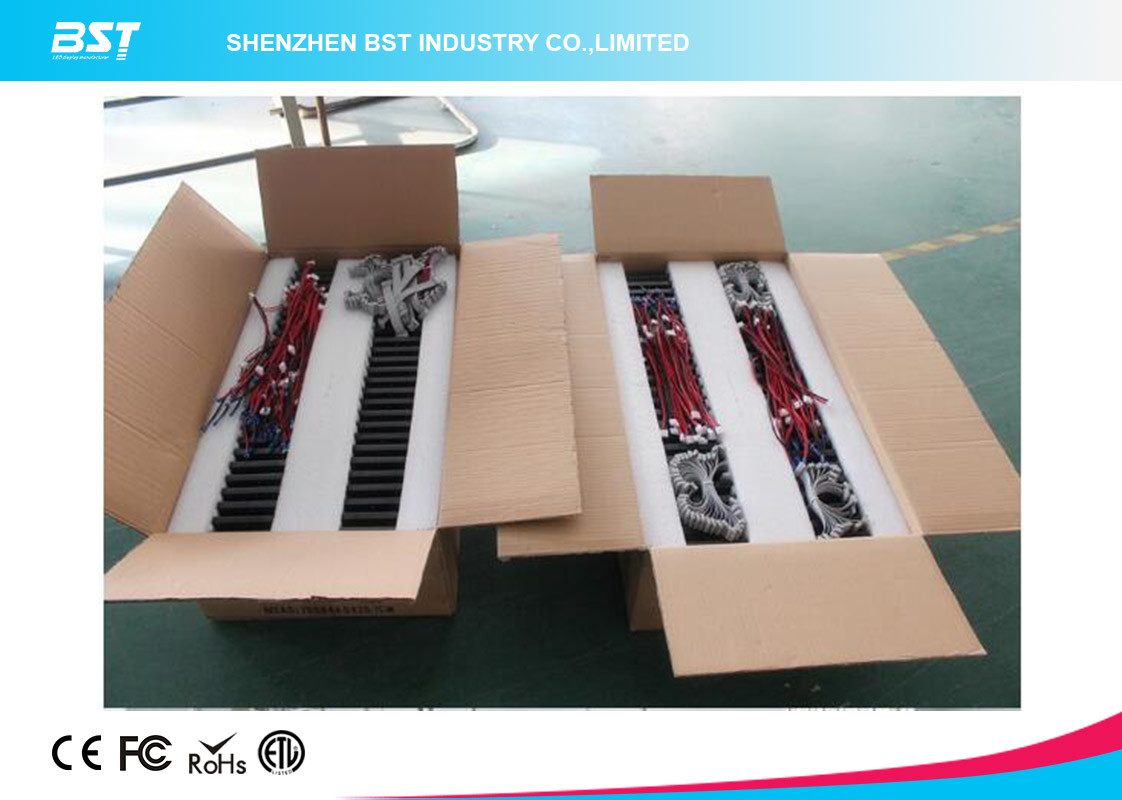

Packing and Shipment
High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising
High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising
High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising


P2.5mm LED Display

High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial AdvertisingHigh Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial AdvertisingHigh Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising

Workshop
High Rsolution P2.5 Black LEDs Display Module 240 × 240mm for Commercial Advertising
