Outdoor HD Rental Led Screen Pixel Pitch 6.66mm With 140 Degree Viewing Angle
Quick Detail:
1, Wide visual angle, smooth surface
2, Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced.
3, Modular design, flexible shape for big area
4, High quality with reasonable price
5, Low power consumption
6, Leading technology of high grey level and low brightness,
Specifications:
Parameters of BST-ORD-10
| LED Display Series | BST-ORD-6-I | BST-ORD-8 | BST-ORD-10 | | Pixel Pitch(mm) | 6.66 | 8 | 10 | | Pixel Density(dots/m2) | 22545 | 15625 | 10000 | | Avr Power Consumption (W/M2) | ≤500 | ≤500 | ≤500 | | Brightness Max(cd/m2) | ≥6500 | ≥6500 | ≥5000 | | Color Temperature(after calibration)K | 6500 | 6500 | 6500 | | Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | | Weight(kg/Panel) | 14 | 14 | 14 | | Working Humidity | 10%-95% | 10%-95% | 10%-95% | | Driving Method | 1/6 | 1/5 | 1/4 | | LED Type | SMD2727 | SMD2727 | SMD3535 | | Horizontal/Vertical Viewing Angle(º) | H140º/V140º | H140º/V140º | H140º/V140º | | Recommended Viewing Distance(m) | 1--100 | 1-100 | 1--100 | | Power Supply | Single power | Single power | Single power | | Refresh Rate(Hz) | ≥1920 | ≥1920 | ≥1920 | | Weight(kg/m2) | 40 | 40 | 40 | | Grey Scale(bit) | R’G’B 16bit | R’G’B 16bit | R’G’B 16bit | | Frame Rate(Hz) | 50/60 | 50/60 | 50/60 | | Life Time(H) | ≥100000 | ≥100000 | ≥100000 | | Protection | Outdoor | Outdoor | Outdoor | | Cabinet Size(W*H)(mm) | 640x640 | 640X640 | 640X640 | | LED Chip | Epistar | Epistar | Epistar | | Contrast | 2000:1 | 2000:1 | 2000:1 | | Protection | IP65 | IP65 | IP65 | | Max Power Consumption(W/M2) | 900 | 900 | 900 | | Working Temperature | -20C°/40C° | -20C°/40C° | -20C°/40C° | | Module Size(W*H)(mm) | 320X160 | 320X160 | 320X160 | | Driving Chip | MBI5124 | MBI5124 | MBI5124 | | Control Input | DVI/HDMI/HDSDI | DVI/HDMI/HDSDI | DVI/HDMI/HDSDI | | Max Hanging(Vertical) | ≥200kg | ≥200kg | ≥200kg | |
P6.66 Outdoor Rental LED Display
Controller
Packing
Description:
1, Large viewing angle,both H/V can reach 140 degree;getting vivid effect within any position of the viewing range;
2. Die-casting aluminum design, CNC precise processing
3, High protective rank: reach IP65 protection.
4, Seamless, bezel-free, size-free splicing with adjusting accuracy is 0.01mm
5. Can compile facture and play through the computer.
6. Modular front maintenance, supporting hot plugging for unit module and wires
Application:

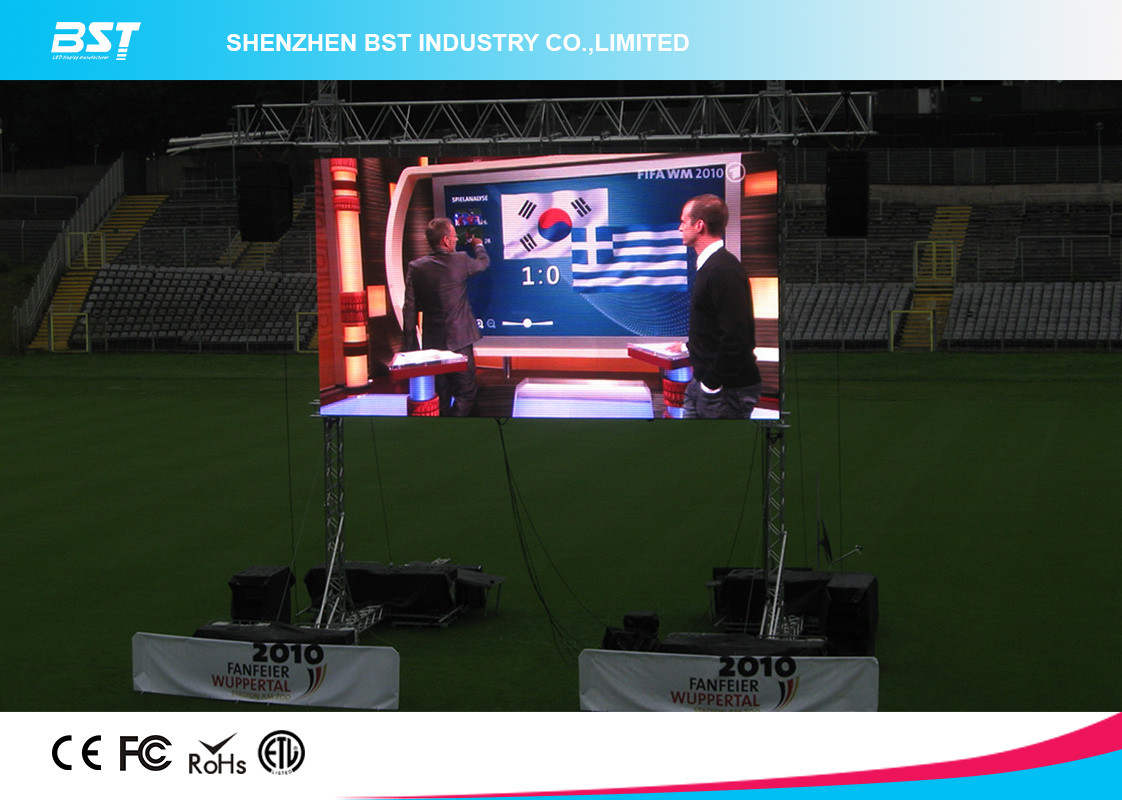

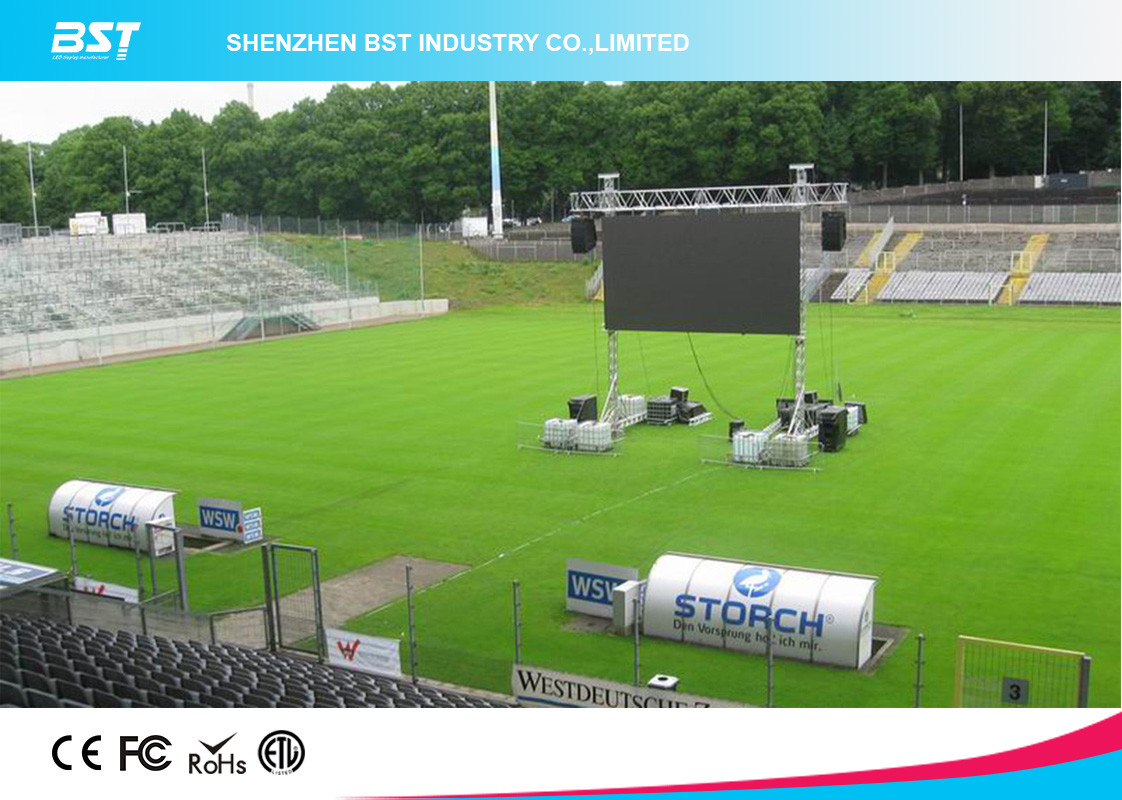

Commercial advertising, animation, advertising, stage backdrop, stadium, business establishments,TV shows, car shows, mobile media, shopping center,exhibitions, fashion shows, concerts,Video, graphics,sports, entertainment, events,Stadium perimeter, etc
