High refresh rate P4mm Indoor Black Leds Display Module with 1/16 scan

ShenZhen BST Industry Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High refresh rate P4mm Indoor Black Leds Display Module with 1/16 scan

Brand Name : BST

Model Number : BST-IM-4

Certification : CE, RoHS, FCC, ISO

Place of Origin : Shenzhen, China

MOQ : negotiable

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000sqm/month

Delivery Time : 10-20 days after receive payment

Packaging Details : Carton case, Plywood case ;

Type : P4mm

Drive Method : 1/16 scan

Pixel : 32X32

Size : 128X128mm

weight : 0.25KG/pcs

Package : carton case

Controller : Linsn, NOVA

Hub Type : Hub75

Contact Now

High refresh rate P4mm Indoor Black Leds Display Module with 1/8 scan



Quick Detail:

1,  Good quality;

2,  Good price;

3,  Good 24hours service;

4,  Green product;

5,  Fast delivery time.



Detail Description:

This is SMD2121 LED type, with black LED, 1/16 scan, 1,200 nits/sq.m;

Synchronous control, with high refresh rate;

100,000 hours span life of LED in theory.



Specifications:

Product model number


BST-IM-4

1. Pixel


Pixel LED

2121

Pixel Configuration


1 R,  1G ,  1B


Wave length ( nm )


R: 626-628 ,  G: 518-520 ,  B: 466-468


Pixels Pitch ( mm )


4


2 . Module


Module Size ( mm )


128 * 128 * 10


Module Pixels (dot)


32 * 32


3. Packaging


Packing box material


Wooden case or Carton case

4. electricity parameter


Pixel density (dots/ m 2 )


62500

White Balance Brightness ( cd/m 2 )


≥ 1200


Color temperature ( K )


5000-9500 (choice by user)


Brightness Adjusted


100 grade by software or by Auto-optic induced.


View Angel


Horizontal 140 ° ; Vertical 140 °


Best viewing distance ( m )


4-30


Communication distance ( m )


Internet Wire : 120 Fiber Cable : 1000


Screen work Method


1/16 scan


LED driving method


Constant driving current


Gray Grades


16384 levels for each color


Refresh Frequency ( Hz )


≥ 1500


Picture display method


Dots to dots display synchronized with CRT


Signal interface


DVI


Input signal


Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV


Display format


800 * 600 ,  1024 * 768 ,  1280 * 1024


Software


Support windows series system


Working temperature (ºC )


-30+60


Humidity ( RH )


Up to 95


Stored temperature ( ºC)


-30  +70


Screen Lifetime(hours)


≥100, 000


Out of controlled dots

≤3/10, 000 (Out of controlled dots means the pixels
of which the brightness

and the wave length are both >10%
depart to the normal one)

Switch power supply


Switch power supply
(include CE/GS or UL/CSA certificate)
110V/60HZ ,  220V/50HZ





High refresh rate P4mm Indoor Black Leds Display Module with 1/16 scanHigh refresh rate P4mm Indoor Black Leds Display Module with 1/16 scanHigh refresh rate P4mm Indoor Black Leds Display Module with 1/16 scan


Product Tags:

waterproof led module



led screen module


Buy cheap High refresh rate P4mm Indoor Black Leds Display Module with 1/16 scan product

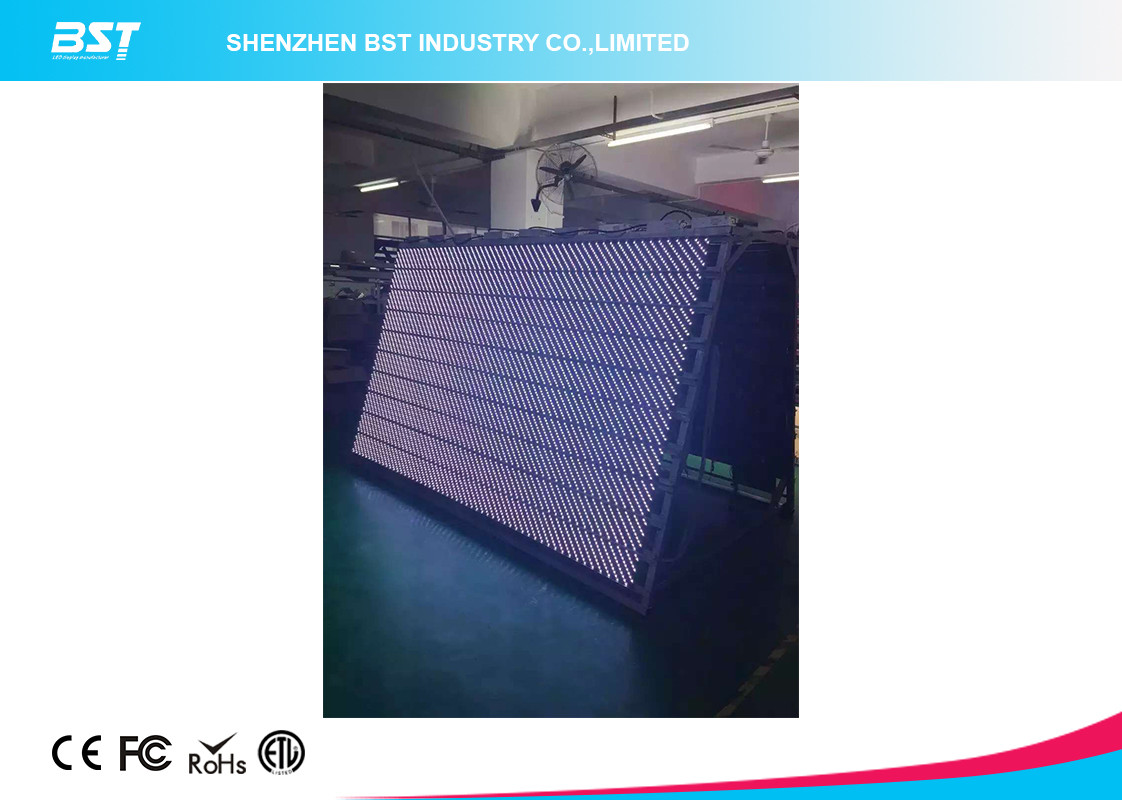

High refresh rate P4mm Indoor Black Leds Display Module with 1/16 scan Images
